HAZARDOUS LOCATION Vacuum Oven

MODEL GXS

The GXS offers code-compliant drying for NFPA Class & Division, IECEx, and ATEX applications. The heating system is comprised of an explosion-proof heating array mounted to the exterior of the vacuum vessel of which heats the walls, the energy absorbed by the walls is then reradiated into the product inside the vessel.  There are several advantages of hot wall heating such as anti-condensation, cleanability, and the ability to heat complex shapes and parts.



Full system integration can be provided which includes, explosion-proof vacuum pumps, fore-line & exhaust traps, and automatic atmospheric controls.  Other features include inert gas sweeping to vacuum pump, sweep to atmosphere, steam or water heating, and process cooling.

standard features

  • Continuous Operating Temperature. standard 250°F (121°C); optional 482°F (250°C)

  • Vacuum Range Capability. 760 Torr to 1-mTorr

  • Temperature Uniformity.  2% of Set-Point

  • Process Control.  ramp & soak programmable temperature and vacuum

  • Hazardous Location Control.  utilizes enclosure pressurization and increased safety construction

  • Over-Temperature Control.  FM approved limit control with digital display

  • Intrinsically Safe Sensors.  field sensors all connect through barrier electronics

  • Vessel Construction. reinforced heavy wall stainless steel plate

  • Exterior.  powder coated heavy gauge mild steel exterior with stainless optional

  • Vessel Door.  fully insulated, O-ring seal and lateral adjusting needle bearing hinges

  • Rupture Disc.  flange mounted and vacuum supported safety pressure release

  • Operating Voltages.  208/240 1 or 3 phase, 380/415/480 1 or 3 phase

  • Warranty.  1-year Limited

available models & sizes (click to configure for price)

  • Model 2GXS    2-cuft (56-liter); interior 12.5 x 12.5 x 20-in deep (317 x 317 x 508-mm)

  • Model 4GXS    4.5-cuft (127-liter); interior 18 x 18 x 24-in deep (457x 457 x 609-mm)

  • Model 8GXS    8-cuft; (226.5-liter); interior 24 x 24 x 24-in deep (609 x 609 x 609-mm)

  • Model 27GXS  27-cuft; (764.5-liter); interior 36 x 36 x 36-in deep (914 x 914 x 914-mm)

  • Model 64GXS  64-cuft; (1812-liter); interior 48 x 48 x 48-in deep (1219 x 1219 x 1219-mm)

optional equipment
  • Vacuum Pumping.  Diaphragm, Screw, Scroll and Piston vacuum pumps fully integrated and hazardous location rated

  • Data Logging.  Compliant multi-point trend graphs and data logging

  • Atmospheric Control.  Electronically controlled sweeping capabilities to the atmosphere or vacuum pump

  • Solvent Condensing & Recovery.  Condenser, accumulator, and collector set-ups for heavy processing requirements

applications
  • Shatter Production.  Used for the extraction of propane in shatter production in the cannabis industry. Our construction is fully compliant  for processing Group D and IIA gases per the NEC/ CEC / ATEx / IECEx

  • Composite Curing.  Our systems have been utilized for the post-curing of composite materials in order to remove residual volatiles.

  • Part Cleaning.  Used in the drying of parts cleaned in volatile or flammable solvents

PRICING

Configure a GXS for quote


ASK AN EXPERT

Send us your questions

ask expert.png
Interior
Interior

Heavy duty reinforced stainless plate vacuum oven chamber construction

press to zoom
Shelving
Shelving

Wire rack product loads for vacuum drying

press to zoom
Model 27GXS
Model 27GXS

Explosion proof vacuum dryers and ovens

press to zoom
Interior
Interior

Heavy duty reinforced stainless plate vacuum oven chamber construction

press to zoom
1/4
Heavy Duty Hinges
Heavy Duty Hinges

Needle bearing assisted high strength hinges

press to zoom
ACME Screw Door Mechanism
ACME Screw Door Mechanism

High strength ACME closure techniques

press to zoom
ACME Screw Door Mechanism
ACME Screw Door Mechanism

High strength ACME closure techniques

press to zoom
Heavy Duty Hinges
Heavy Duty Hinges

Needle bearing assisted high strength hinges

press to zoom
1/4

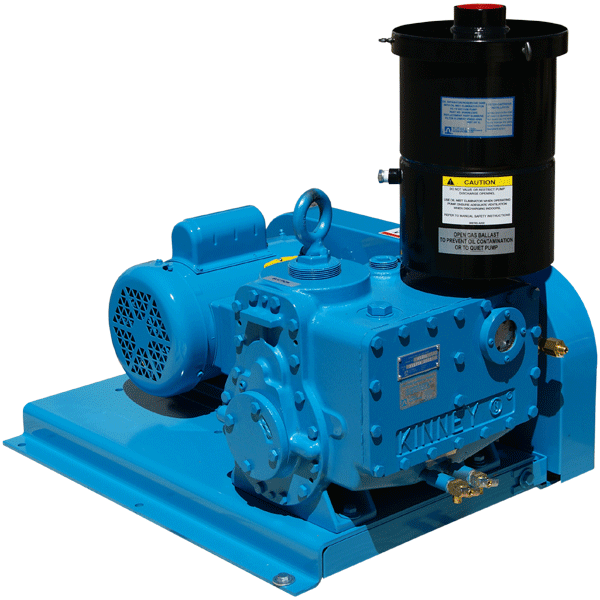

Vacuum Pumps
Vacuum Pumps

Kinney Tuthill KD Series pistion pump with explosion proof motor and solenoids

press to zoom
KNF
KNF

Diaphragm vacuum pump for hazardous location vacuum ovens

press to zoom
Rotometers
Rotometers

Swagelok gas metering rotometers

press to zoom
Vacuum Pumps
Vacuum Pumps

Kinney Tuthill KD Series pistion pump with explosion proof motor and solenoids

press to zoom
1/5
